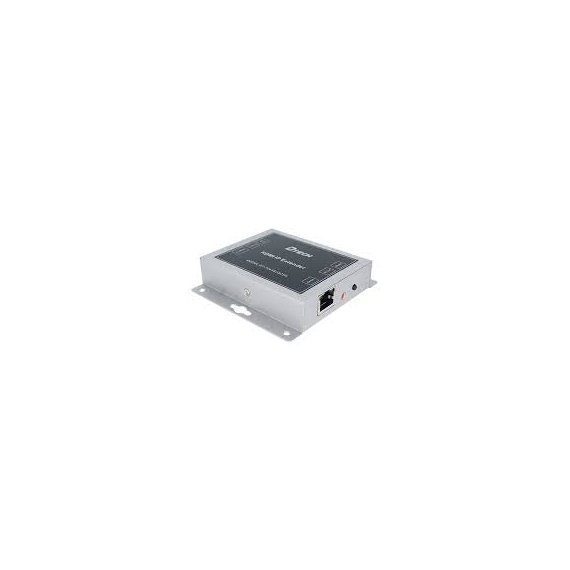

DTECH HDMI EXTENDER 120M IP SUPER DT-7043S (SENDER)

 Specifications:

• Model: DT-7043S (Sender)

• Supported Resolution: Up to 1920x1080 @ 60Hz (Full HD 1080p)

• Transmission Medium: CAT5e/6 UTP or STP Ethernet cable

• Maximum Transmission Distance: Up to 120 meters (approximately 394 feet)

• HDMI Version: HDMI 1.3

• HDCP Support: HDCP 1.2 compliant

• IR Function: Supports IR transmitter for remote control from receiver side

• Power Supply: DC 5V/1A adapter included

• Operating Temperature: 0°C to 60°C

• Dimensions: Approximately 9.2 x 7.8 x 2.5 cm

• Weight: Approximately 180g

• Material: Durable metal housing for effective heat dissipation

The DTECH DT-7043S HDMI Extender is designed to transmit high-definition HDMI video and audio signals over long distances using a single CAT5e/6 Ethernet cable. With a range of up to 120 meters, it is ideal for professional AV setups in conference rooms, education centers, home theaters, and surveillance systems.

This listing includes the Sender (TX) unit only. The Receiver (RX) unit is required for full functionality and must be purchased separately.

 Key Features:

• Full HD 1080p Support: Transmits HDMI signals at 1920x1080 resolution with zero loss and low latency.

• 120M Transmission Distance: Extend HDMI over a single CAT5e/6 cable up to 120 meters.

• Plug & Play: No software or driver installation required.

• Loop-Out Function: HDMI local loop output allows monitoring at the source.

• IR Pass-Through Support: Allows remote control of the source device from the display side.

• Ethernet-Based Transmission: Uses standard IP technology for stable signal distribution.

• DC 5V Power Supply: Ensures stable performance and long-term operation.

  Important Note:

  • This product is Sender only (TX). You will need the Receiver (RX) unit to complete the extender set.
  • Use high-quality CAT5e/6 cables for best performance.
  • Make sure both devices are powered properly.
