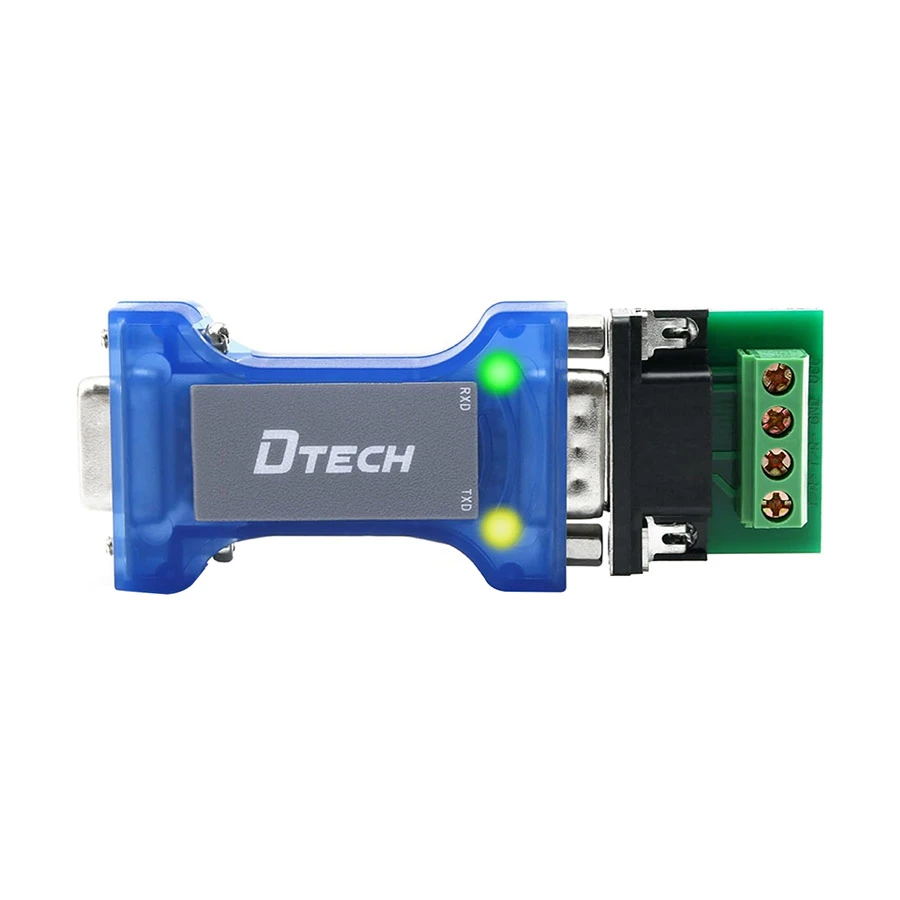

Dtech Passive RS232 to RS485 Converter (with lighting) #DT-9004

Write a review

Tk.1,150.00

Tk.1,300.00 -12%

In stock

+ −

Minimum quantity for "Dtech Passive RS232 to RS485 Converter (with lighting) #DT-9004" is 1.

Vendor: Computer Solution Inc.

Computer Solution Inc. have good quality products and variation too. It is a local vend...

Ask a question

Save 12%

Description
Features
Reviews

General

Brand
Dtech

Model
Dtech Passive RS232 to RS485

Type
RS232 Converter

Part No
DT-9004

Technical Info

Port Side-1
RS232

Port Side-2
RS485

Length
No

Physical Description

Color
Blue

Warranty

Warranty Details
1 year

Additional Info

Feature
Compatible with RS232, RS485 TIA/EIA standard. Automatically send/receive data and with LED lighting. Communication rate: 300~38400bps. Communication distance: 1.2Km (9600bps),can connect 32pcs RS232 or RS485 device. Electrical interface: RS-232 end of the DB9F, RS-485 is DB9M connector, Work mode: asynchronous half duplex.

Specialty
The transmission medium: twisted pair (diameter greater than or equal to 0.5MM) or shielded wire, The transmission rate: 300-115.2KBPS, Size: 64mmX33mmX17mm, The use of the environment: -20 C to 70 C, relative humidity of 5% to 95%, The transmission distance: 1200 meters (RS-485) to 15 meters (RS-232), Protection class: surge protection of RS-485 interface on each line of the 600W. Two kinds of communication: two line / half duplex point-to-point and point to multipoint / two wire half duplex.

Country Of Origin
China

Made in/ Assemble
China
