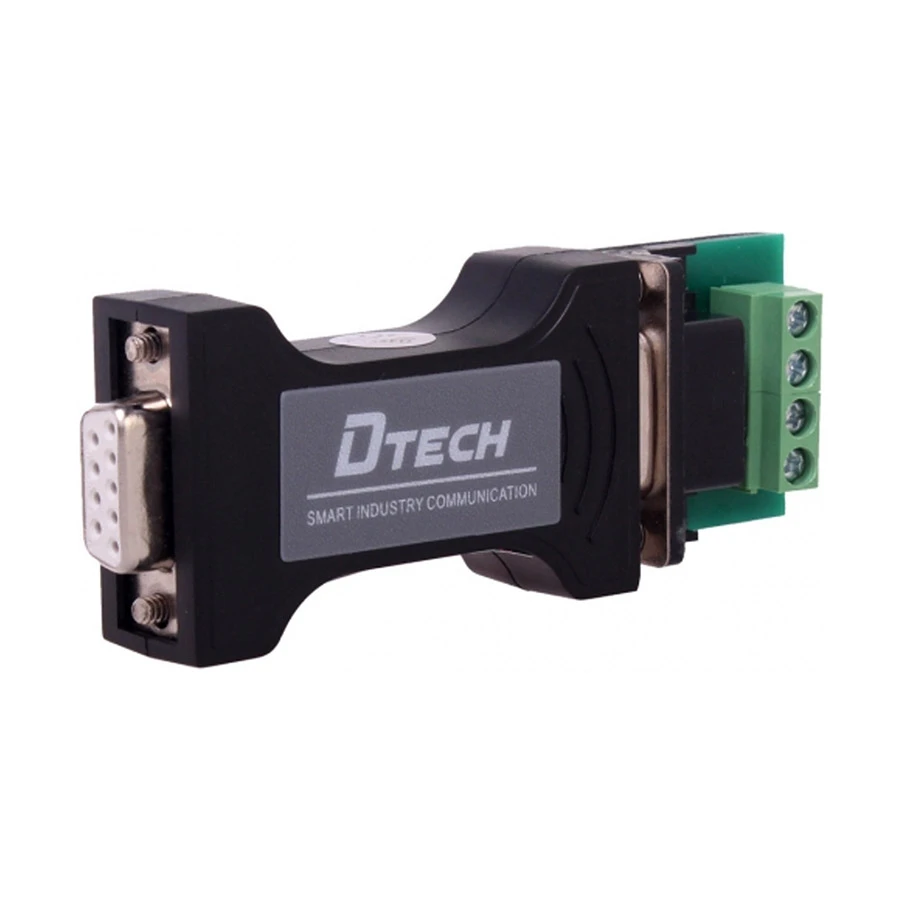

Dtech Passive RS232 to RS485/RS422 Converter #DT-9003

Write a review

Tk.800.00

Tk.1,000.00 -20%

In stock

+ −

Minimum quantity for "Dtech Passive RS232 to RS485/RS422 Converter #DT-9003" is 1.

Vendor: Computer Solution Inc.

Computer Solution Inc. have good quality products and variation too. It is a local vend...

Ask a question

Save 20%

Description
Features
Reviews

General

Brand
Dtech

Model
Dtech Passive RS232 to RS485/RS422 Converter

Type
RS232 Converter

Part No
DT-9003

Technical Info

Port Side-1
RS232

Port Side-2
RS485/RS422

Physical Description

Dimensions (WxHxD)
64 x 33 x 17mm

Color
Black & Green

Warranty

Warranty Details
1 year

Additional Info

Feature
Interface characteristics: compatible with EIA/TIA RS-232C, RS-485/RS-422 standard. Electrical interface: DB9 female connector at RS-232 end, DB9 male connector at RS485/RS422end, with 6 position terminal board. Working mode: Asynchronous Full Duplex, half duplex automatic selection of differential transmission, without jumper settings.

Specialty
Transmission medium: twisted pair wire or shielded wire. Transmission rate: 300BPS-115.2KBPS. Use of the environment: -20 degrees to 70 degrees, relative humidity of 5%to95%. Transmission distance: 1200 meters (RS-485 end).

Country Of Origin
China

Made in/ Assemble
China

No reviews found
