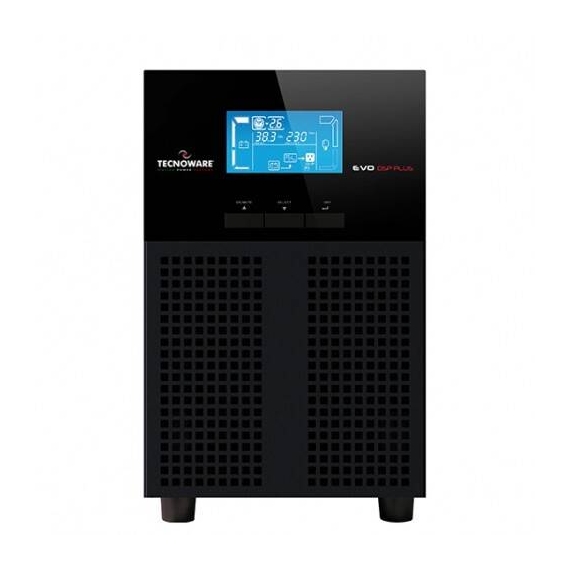

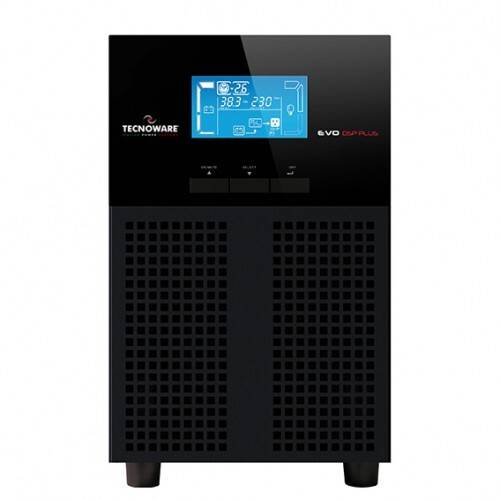

Tecnoware Standard Back Up Online UPS EVO DSP Plus 2.0 KVA MM PF 0,9 Eversion (FGCEVDP2403MME)

Product Description:

• Product Types:UPS
• Brand:Tecnoware

Key Features

• Model: FGCEVDP2403MME 2KVA
• Nominal Power 2.000 VA
• Active Power 1800W
• Compatible with Generators
• USB and RS232 ports

Main Feature

• Load Capacity :Overload capability 110% only audible warning, 110-130% for 30 sec, >130% for 100 ms
• Input Voltage :Nominal voltage 208Vac/220Vac/230Vac/240Vac
• Input voltage range 160Vac-300Vac from 50% to 100% load, 110Vac-300Vac up to 50% load
• Output Voltage :Nominal voltage 208Vac/220Vac/230Vac/240Vac
• Static voltage Regulation at %100 ±2% linear load (On-Line and battery mode)
• Voltage THD at rated linear load <3% (linear load), <6% (non-linear
• Frequency (Battery Mode) :50/60 Hz
• Noise Level :< 45 dBA to 1 m
• Battery :12V 9Ah, Lead acid, sealed
• Rectifier Type :Yes

Input Features

• Frequency :Nominal frequency 50/60 Hz (selectable)
• Input frequency range (On-Line mode) ±7%
• Power Factor :0,99
• Voltage Range :Nominal voltage 208Vac/220Vac/230Vac/240Vac
• Input voltage range 160Vac-300Vac from 50% to 100% load, 110Vac-300Vac up to 50% load

Output Features

• Backup Time :15 min
• Voltage Range :Nominal voltage 208Vac/220Vac/230Vac/240Vac
• Static voltage Regulation at %100 ±2% linear load (On-Line and battery mode)
• Voltage THD at rated linear load <3% (linear load), <6% (non-linear load)
• Power Factor :0,9
• Transfer Time :0 ms (On-Line)

Manufacture Warranty

• Warranty :02 years Warranty
• Origin:Italy

Tecnoware FGCEVDP2403MME 2KVA Online UPS (Origin Italy)
Technoware FGCEVDP2403MME UPS On-Line Double Conversion Technology without transformer (VFI-SS-111).Power Factor 0,9. Rectifier realized by IGBT technology.Active PFC Circuit (0.99).Compatible with Generators. Output voltage and frequency can be regulated from the front panel. Static Bypass. USB and RS232 ports.
