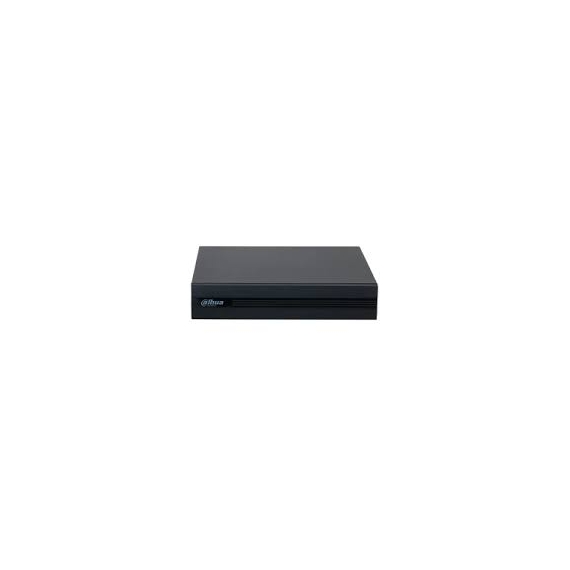

DAHUA DH-XVR1B04-I 4-Channel Digital Video Recorder

Key Specifications

• Video Inputs:

  • Analog: 4 × BNC ports supporting HDCVI, AHD, TVI, CVBS auto-detect

  • IP: Up to 5 channels, each up to 2MP; max 20 Mbps incoming bandwidth


• Video Compression:

  • Smart H.265+ and H.265 dual-stream


• AI Features:

  • SMD Plus (Smart Motion Detection) on 4 analog channels

  • AI Coding for efficient storage and bandwidth usage


• Audio:

  • 1-channel RCA input/output

• Video Output:

  • 1 × HDMI (up to 1080p)

  • 1 × VGA


• Storage:

  • 1 × SATA HDD up to 6TB

• Network:

  • 1 × 10/100 Mbps Ethernet port

• Operating System:

  • Embedded Linux


• Physical:

  • 1U rackmount design

  • Dimensions: 375 mm × 284.3 mm × 53 mm

  • Weight: 1.51 kg

• Power:

  • 12V DC, 4A

  • Power consumption: ≤10W (without HDD)


• Operating Conditions:

  • Operating temperature: –10°C to +55°C

  • Storage temperature: –20°C to +60°C
