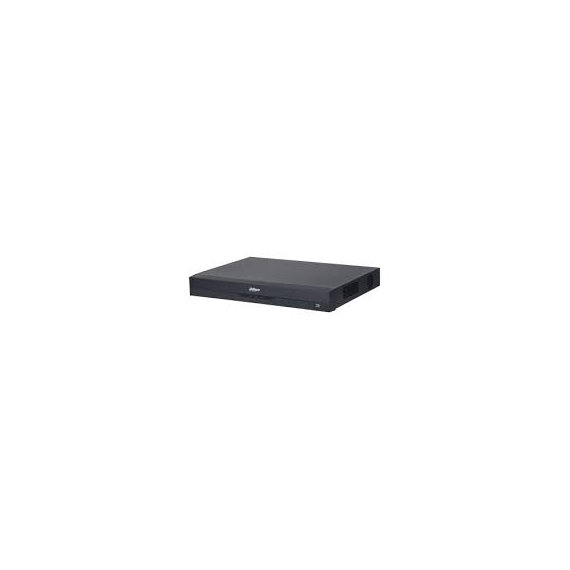

Dahua NVR4232-EI 32 Channel 1U 2HDDs WizSense NVR

 Key Specifications

• AI Capabilities:

  • Recorder-side AI: Face detection and recognition (1 channel), perimeter protection (2 channels), SMD Plus (4 channels)

  • Camera-side AI: Face detection and recognition, perimeter protection, SMD Plus, ANPR, people counting, stereo analysis, heat map

• Resolution Support: Up to 16MP input, with decoding capabilities varying based on AI settings

• Bandwidth:

  • Maximum incoming bandwidth: 256 Mbps

  • Recording bandwidth: 180 Mbps with AI enabled

• Storage:

  • Dual SATA HDD ports, each supporting up to 16TB

  • Total storage capacity: Up to 32TB

• Video Outputs:

  • 1 HDMI (up to 4K)

  • 1 VGA

• Audio:

  • 1-channel RCA input

  • 1-channel RCA output

• Network:

  • 1 × 10/100/1000 Mbps Ethernet port

  • Supports ONVIF, HTTP, HTTPS, TCP/IP, IPv4/IPv6, and more

• Physical:

  • 1U rackmount design

  • Dimensions: 375 mm × 284.3 mm × 53 mm

  • Weight: 1.51 kg

• Power:

  • 12V DC, 4A

  • Power consumption: ≤10W (without HDD)

• Operating Conditions:

  • Operating temperature: –10°C to +55°C

  • Storage temperature: –20°C to +60°C
